Flushing/High Pressure Equipment


Vactor (Combination Flusher/Vacuum Truck)

2000 Mack, 2100 Series Vactor

Design
Exclusive Vactor Modul-Flex«
Blower
Roots/Dresser Pos. Displacement
Drive
Chassis driven, direct drive
Inlet Volume
Up to 5200 CFM at 2200 RPM
Vacuum Rating
Up to 18 in. (457 mm) Hg
Cotta Transfer Case
Beltless, rated to 425 HP continuous
Fully Hydraulic Boom
Cylinder actuated movement
Pickup Hose
8 in. (203 mm) diameter

Debris Body Capacity
Up to 16 cu. yd. (12m│)
Water Tank Capacity
1500 gall (1893 L - 5678 L)
Water Tank Construction
Aluminum (10 year warranty)
Water Pump
Vactor Jet Rodder™
Rating
100 GPM at 2500 PSI
Delivery at the nozzle
100 GPM at 2500 PSI
Pump Action
Continuous flow or jack hammer
Pump Operating Speed
13 cycles per minute
Rear Door
Full opening, hydraulic latching

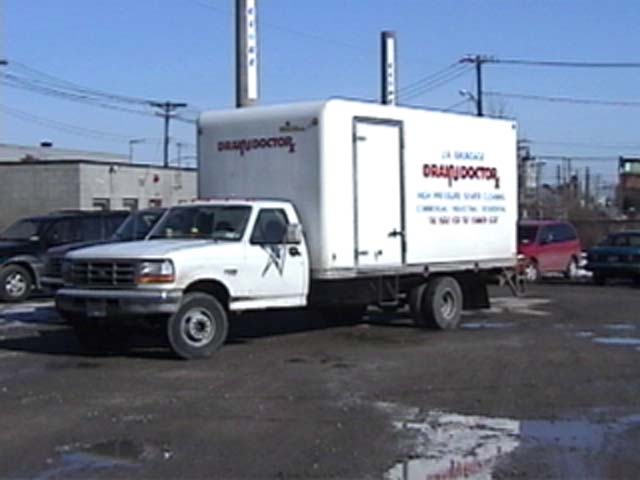

Small High Pressure Unit

1997 Ford Super-Duty

Harben High Pressure Unit capable of up to 4000 psi. (18 GPM)

300 gals. Water

500 Feet of 1/2 inch. & 3/8 inch. Hose



Big High Pressure Unit

2000 GMC 7400 Series

Harben High Pressure Unit capable of up to 10,000 psi. (25 GPM)

600 gals. Water

1,000 Feet of 1/2 inch. & 3/8 inch. Hose




Last Updated: December 1, 2008
